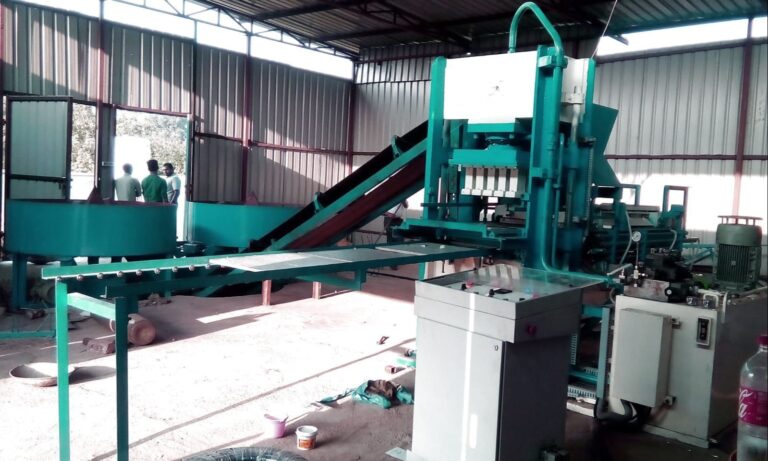

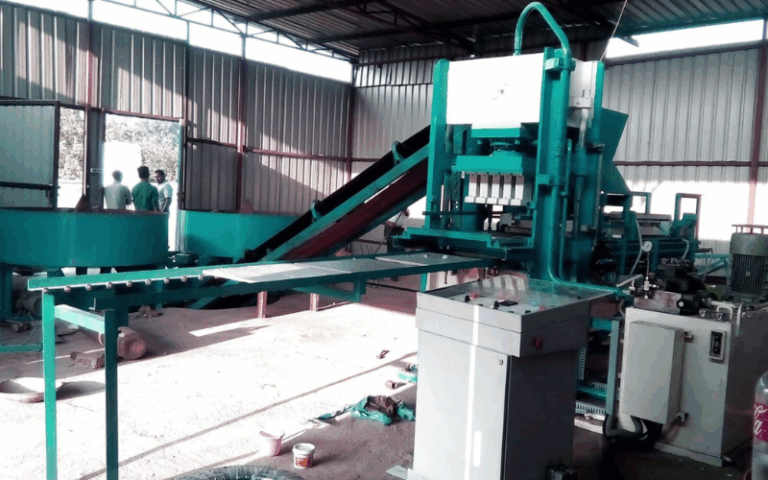

SA 6 Fully Automatic Block machine
- Product base
- Production
- Control system
- Power consumption
- Material feeding
- Hydro vibro
- 12000 Bricks per shift
- SIEMENS PLC
- 40 HP / ~30 kw
- By conveyor
Specification
| Pallet size | 600 X 600 mm |
| Vibration force | 100 – 120 KN |
| Product height | 50-150 mm |
| Vibration motor | 7.5 HP x 2 |
| Cycle time | 15-20 sec |
| Storing of products | Stacker |
| Machine weight | 5 TON |
| Capacity per pallet | 6 |
| Product | Bricks / Paver blocks / Kerbstones / Hollow block |
1. Body
| Our machine body is built using heavy-duty 130 × 130 mm square steel tubing with 10 mm wall thickness, ensuring exceptional strength and long-term durability. This robust frame construction provides superior rigidity to withstand continuous vibration, high compaction forces, and demanding production environments. |
2. Vibration table
| Our machines use a static–dynamic oil-sealed eccentric shaft vibration system, engineered for powerful, consistent, and maintenance-friendly performance. The oil-filled housing keeps the eccentric shaft fully lubricated, reducing wear and preventing dust entry—ideal for cement block production environments. |
3. die
| Our block moulds (dies) are manufactured from high-grade EN8 steel and precision CNC-cut for maximum accuracy and durability. EN8 provides superior hardness and wear resistance, allowing the die to maintain sharp edges and consistent dimensions even under continuous high-pressure compaction |
4. Hydraulic system
| Our hydraulic system is equipped with premium Yuken valves, known worldwide for their precision, reliability, and long service life. Yuken’s advanced valve technology ensures smooth oil flow, accurate pressure control, and fast response during every cycle. |
Product
Sample

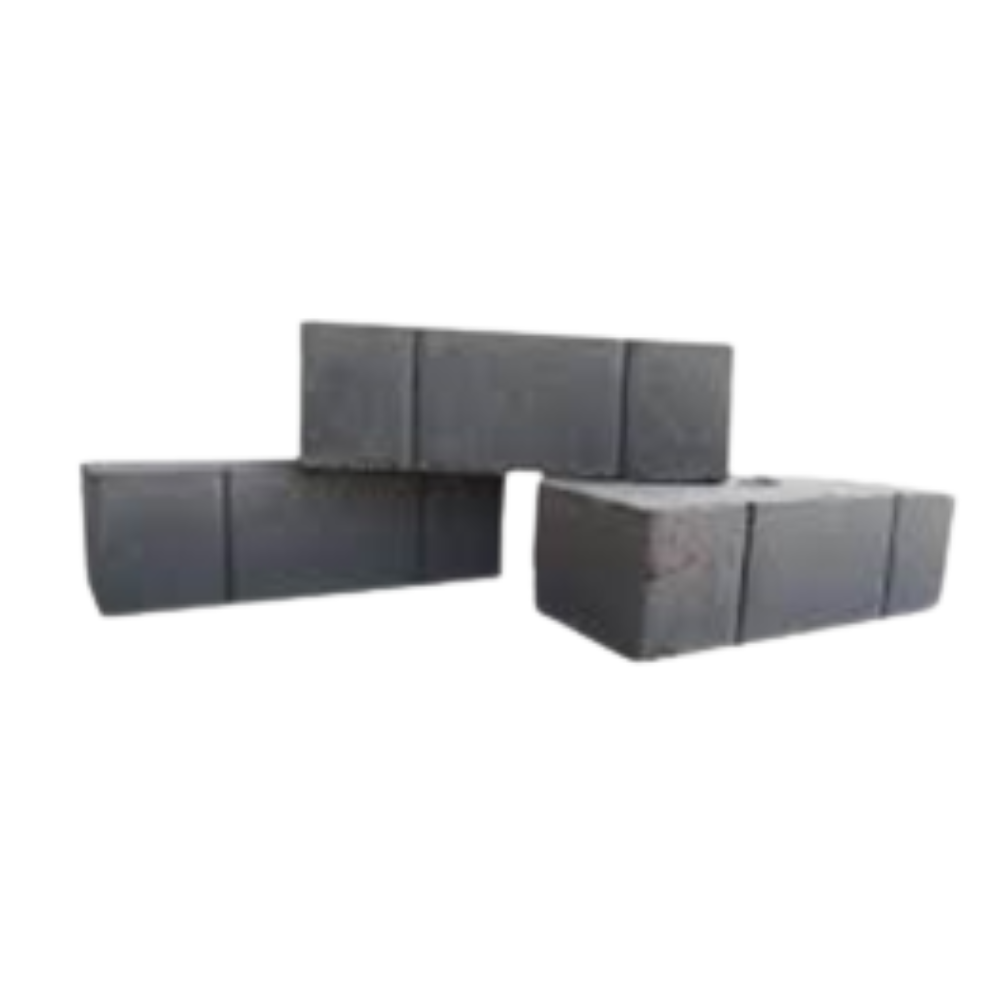

Fly ash brick
90 x 90 x 190
9 x 4 x 3
230 x 110 x 70
Any customized size aviailable
Paver block
zig zag 60 – 150mm
Cosmic – 60 – 150
I Shaped – 60 – 150 mm
Any other design

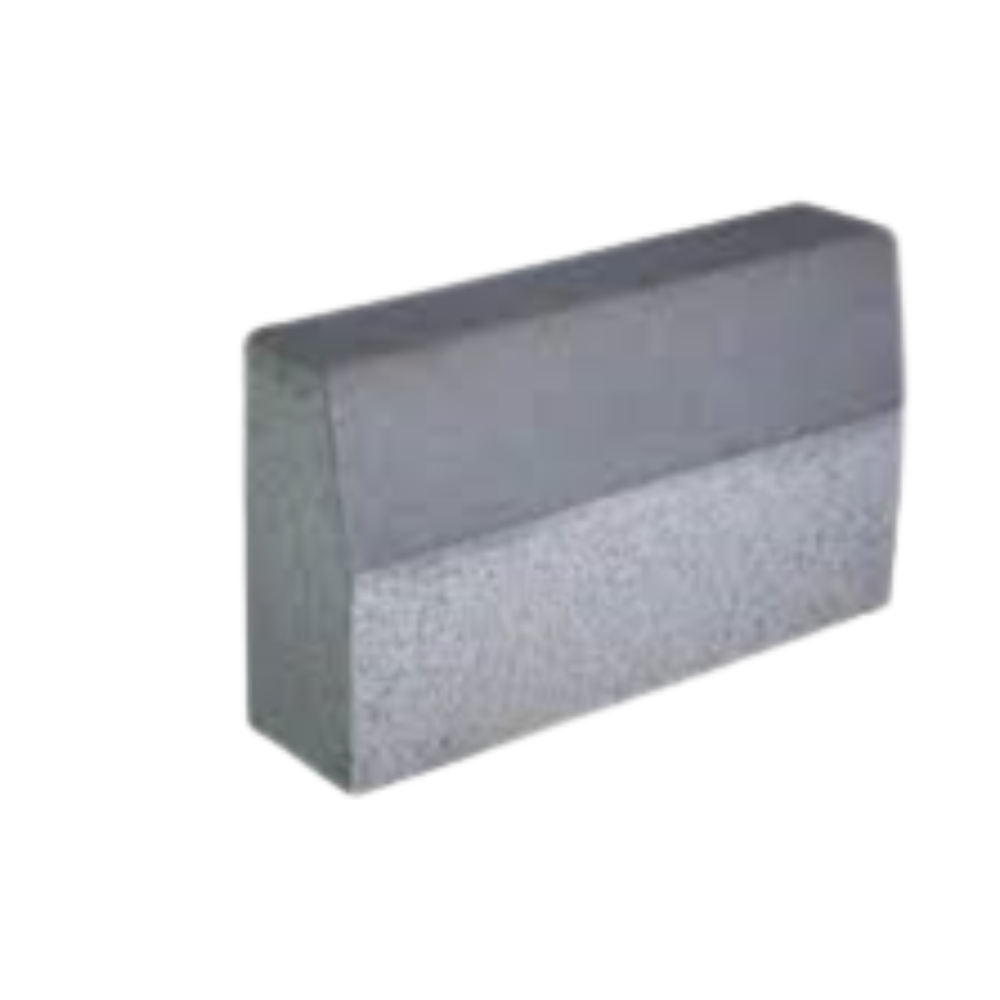

Kerbstone
300 x 300 x 150

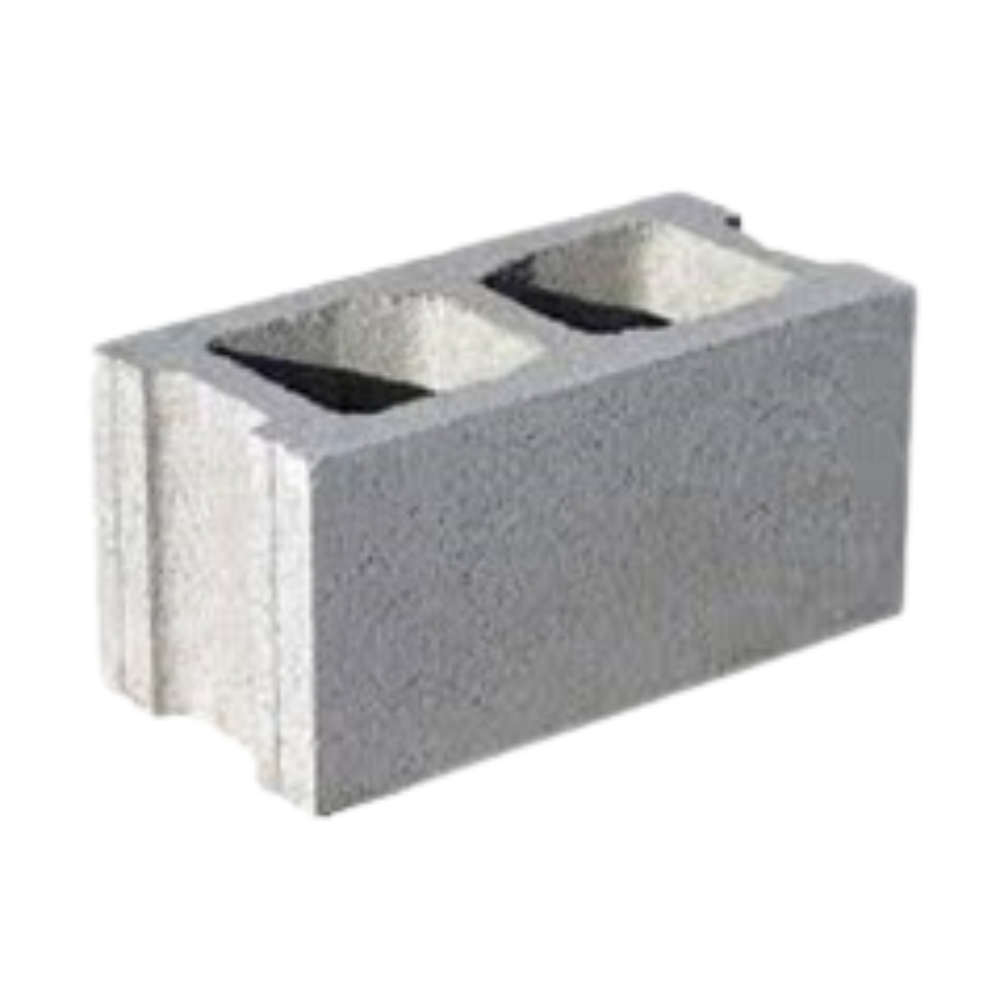

Hollow block
190 x 190 x 390
